WHITESPACE SIZING

The Whitespace modular datacentre is available in a number of standard sizes as detailed below and we are in a position to supply any size to suit your needs (pictures are graphical representations only).

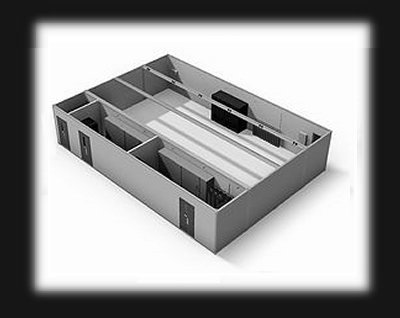

ONE MODULE

The Whitespace One-Module Datacentre is available in both Tier II and Tier III+. Each Datacentre consists of a power module, cooling module and a whitespace module.

External dimensions : 13.7m x 7.5m
Whitespace : 33m
Power density at 250kW : 7500W/m
No. of racks : 17 @ 600mm     13 @ 800mm
kW per rack :      14.7                    19.3

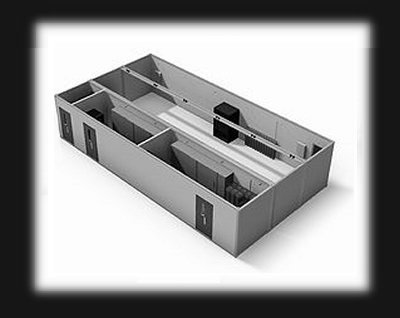

TWO MODULE

The Whitespace Two-Module Datacentre is available in both Tier II and Tier III+. Each Datacentre consists of a power module, cooling module and two whitespace modules.

External dimensions : 13.7m x 10m
Whitespace : 66m
Power density at 250kW : 3750W/m
No. of racks : 34 @ 600mm     26 @ 800mm
kW per rack :      7.3                    9.6

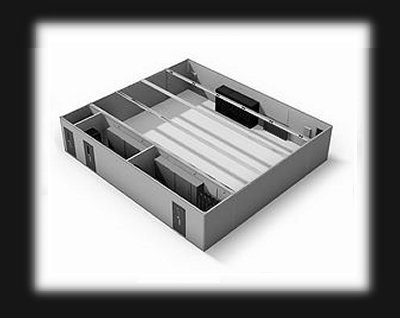

THREE MODULE

The Whitespace Three-Module Datacentre is available in both Tier II and Tier III+. Each Datacentre consists of a power module, cooling module and three whitespace modules.

External dimensions : 13.7m x 12.5m
Whitespace : 99m
Power density at 250kW : 2500W/m
No. of racks : 51 @ 600mm     39 @ 800mm
kW per rack :      4.9                    6.4

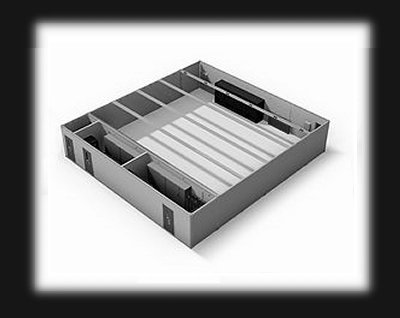

FOUR MODULE

The Whitespace Four-Module Datacentre is available in both Tier II and Tier III+. Each Datacentre consists of a power module, cooling module and four whitespace modules.

External dimensions : 13.7m x 15m
Whitespace : 132m
Power density at 250kW : 1900W/m
No. of racks : 68 @ 600mm     52 @ 800mm
kW per rack :      3.6                    4.8

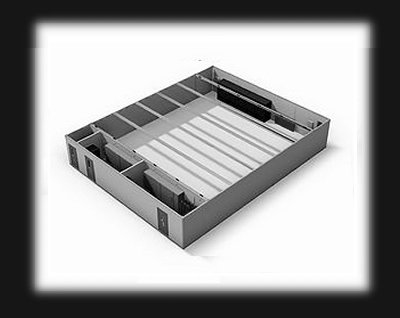

FIVE MODULE

The Whitespace Five-Module Datacentre is available in both Tier II and Tier III+. Each Datacentre consists of a power module, cooling module and five whitespace modules.

External dimensions : 13.7m x 17.5m
Whitespace : 165m
Power density at 250kW : 1500W/m
No. of racks : 85 @ 600mm     65 @ 800mm
kW per rack :      3.0                    3.8

Other bespoke layouts are available

To find out more and what a remarkable value for money
the Whitespace Modular Datacentre is, contact us now on
+44 (0)203 318 3260 or email us at info@whitespace.technology
